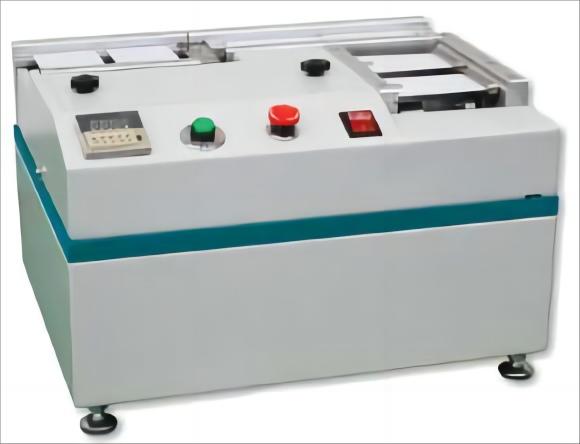

The SWQ series bending & Torsion testers are all-in-one testers that designed to do bending and torsion test according to ISO10373-1 and CQM. Card body shall not present any cracks on its surface and IC shall remain functional after 2000 bending cycles and 1000 torsion cycles.
SWQ-01:total test 6 cards, 2 cards at each station(bending on long side,short side of card, and torsion).
SWQ-02: total test 15 cards, 5 cards at each station(bending on long side,short side of card, and torsion).
SWQ-03:total test 20 cards, 5 cards at each station(bending on long side,short side of card, ,torsion and new shortened bending for dual interface card).
110V 50/60HZ.
How to use: Put card into tester slots, power on the tester and set bending and torsion number on counter, press start to test.
Calibration In case of calibration is needed. This test needs to check height of bending (long side should be 20mm, short side should be 10mm), check the torsion angle (torsion angle should be 15 degree).
The SWQ series bending & Torsion testers are all-in-one testers that designed to do bending and torsion test according to ISO10373-1 and CQM. Card body shall not present any cracks on its surface and IC shall remain functional after 2000 bending cycles and 1000 torsion cycles.
SWQ-01:total test 6 cards, 2 cards at each station(bending on long side,short side of card, and torsion).
SWQ-02: total test 15 cards, 5 cards at each station(bending on long side,short side of card, and torsion).
SWQ-03:total test 20 cards, 5 cards at each station(bending on long side,short side of card, ,torsion and new shortened bending for dual interface card).
110V 50/60HZ.
How to use: Put card into tester slots, power on the tester and set bending and torsion number on counter, press start to test.
Calibration In case of calibration is needed. This test needs to check height of bending (long side should be 20mm, short side should be 10mm), check the torsion angle (torsion angle should be 15 degree).
