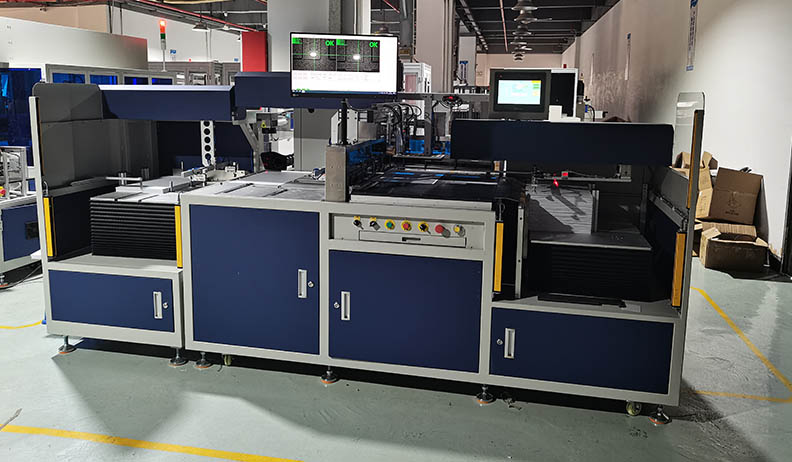

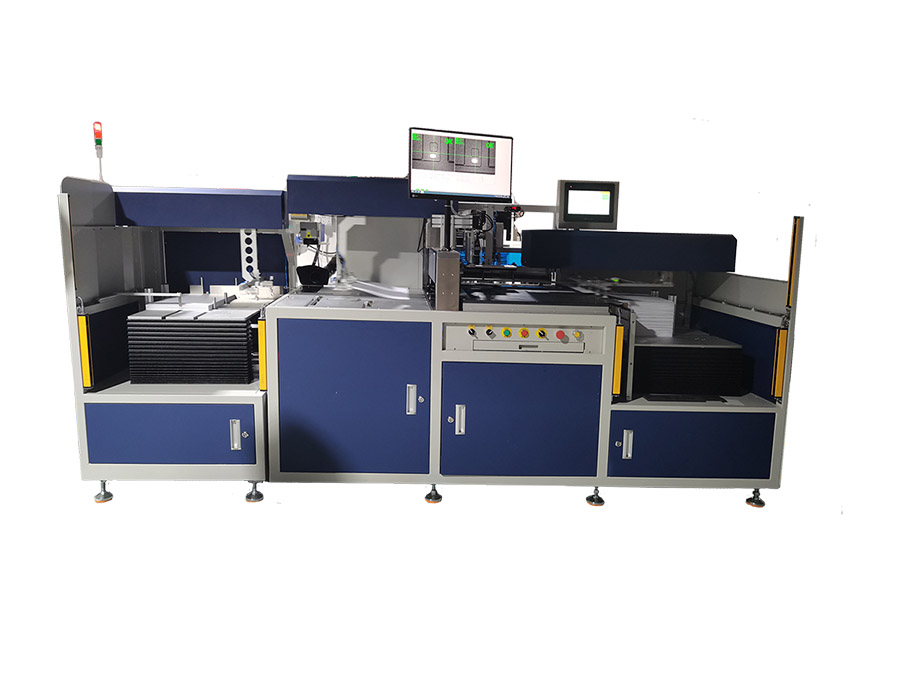

Auto Sheet Trimming Machine - High-Precision Inlay Edge Finishing System

Product Overview

The Auto Sheet Trimming Machine represents the final stage of precision in advanced inlay manufacturing, delivering micron-level edge finishing for contactless card inlays, RFID sheets, and smart card components. Engineered for high-volume production environments, this fully automated system performs right-angle edge shearing with industrial-grade accuracy while eliminating manual handling errors. Integrating vision-guided positioning with servo-controlled mechanics, this machine ensures every inlay sheet meets exact dimensional specifications for seamless integration into final card bodies.

Technical Excellence in Edge Processing

Vision-Guided Precision Positioning

• Dual-camera vision system provides 0.03mm recognition accuracy

• Real-time image processing automatically identifies sheet orientation and position

• Compensates for material variations and feeding inconsistencies

Advanced Servo Correction Technology

• 3-axis servo correction system enables dynamic positioning adjustments

• Closed-loop feedback ensures cutting path accuracy throughout production runs

• Maintains consistent performance regardless of production speed variations

Industrial-Grade Cutting Mechanism

• CNC-machined tungsten carbide cutting dies guarantee perfect right-angle edges

• Precision-ground cutting surfaces maintain sharpness through extended production cycles

• Optimized cutting force calculation prevents material deformation or edge tearing

Complete Automation Workflow

• Automated feeding system with 280mm capacity magazine

• Integrated calibration station performs pre-cut positioning verification

• Smart collection system organizes finished sheets for downstream processing

• Zero manual intervention required during normal operation

Key Performance Features

1. Production Efficiency

• Processing speed: 600-800 sheets/hour (layout dependent)

• Continuous operation capability with automatic material handling

• Quick changeover between different layout configurations

2. Quality Assurance

• Cutting accuracy: ≤0.2mm edge tolerance

• 100% visual inspection of each sheet before cutting

• Automatic rejection system for improperly positioned materials

3. Operational Intelligence

• PLC+HMI control system with intuitive touchscreen interface

• Real-time production monitoring and data logging

• Predictive maintenance alerts and performance analytics

• Customizable cutting patterns via software programming

4. Material Versatility

• Compatible with standard inlay materials including PVC, PET, ABS

• Supports multiple layout configurations: 3×8, 4×8, 5×5, 7×8

• Custom tooling available for specialized material requirements

Technical Specifications

Advanced Control System

Intuitive HMI Interface

• Touchscreen operation with multi-language support

• Real-time display of production metrics and machine status

• Parameter adjustment without stopping production

PLC Precision Control

• Programmable logic controller ensures consistent operation

• Automatic error detection and correction algorithms

• Integration capability with upstream/downstream equipment

Smart Vision Software

• Pattern recognition for various inlay designs

• Automatic calibration for different material batches

• Data recording for quality traceability

Applications & Industry Solutions

Smart Card Manufacturing

• Final edge finishing for payment card inlays

• Precision trimming for ID card components

• Batch processing for access control cards

RFID Production

• Edge refinement for inventory tag inlays

• High-volume processing for logistics tags

• Custom cutting for specialized RFID applications

Electronics Manufacturing

• Component trimming for IoT devices

• Precision cutting for flexible circuit boards

• Automated processing for sensor components

Quality & Reliability Assurance

Built for Continuous Operation

• Heavy-duty construction with 650kg frame stability

• Precision linear guides and ball screw drives

• Industrial-grade components rated for 24/7 operation

Minimal Maintenance Requirements

• Self-lubricating cutting mechanisms

• Easy-access maintenance points

• Long-life cutting dies with quick-change capability

Safety & Compliance

• CE-compliant safety systems

• Emergency stop circuits with redundancy

• Operator safety guards and light curtains

Customization & Integration

Flexible Configuration Options

• Custom cutting patterns and die designs

• Integration with existing production lines

• Specialized material handling systems

Upgrade Capabilities

• Enhanced vision systems for complex patterns

• Higher capacity feeding/collection systems

• Advanced data analytics and reporting

Why Choose Our Auto Sheet Trimming Machine?

For Manufacturers Seeking:

• Consistent edge quality across high-volume production

• Reduction of manual labor and associated errors

• Seamless integration into automated production lines

• Quick ROI through increased throughput and yield

Technical Superiority Delivers:

• Higher yield rates through precision cutting

• Reduced material waste with optimized nesting

• Lower operational costs via full automation

• Future-proof design with upgrade capabilities
