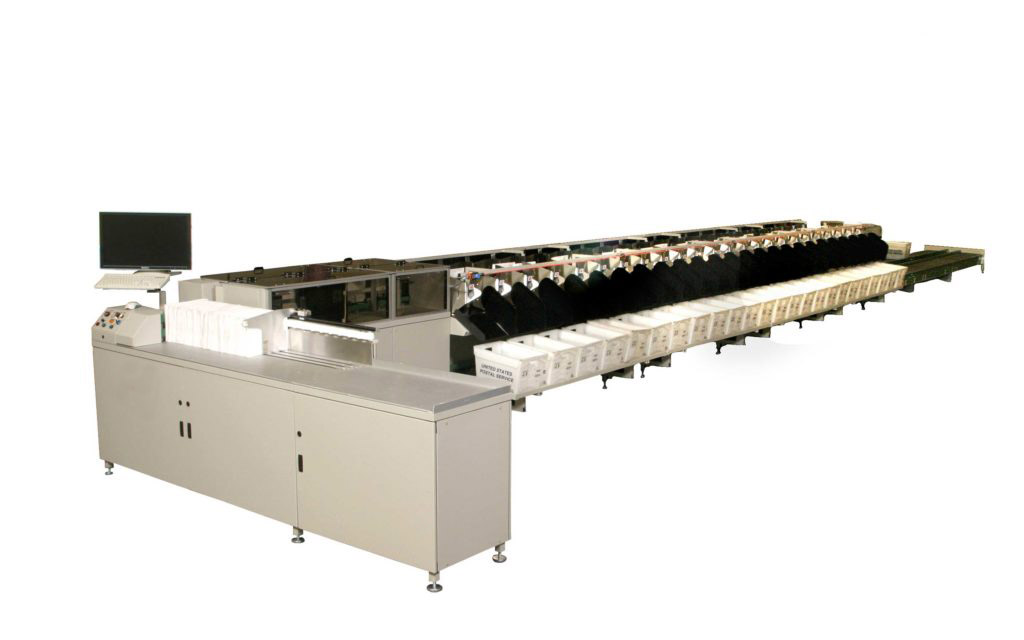

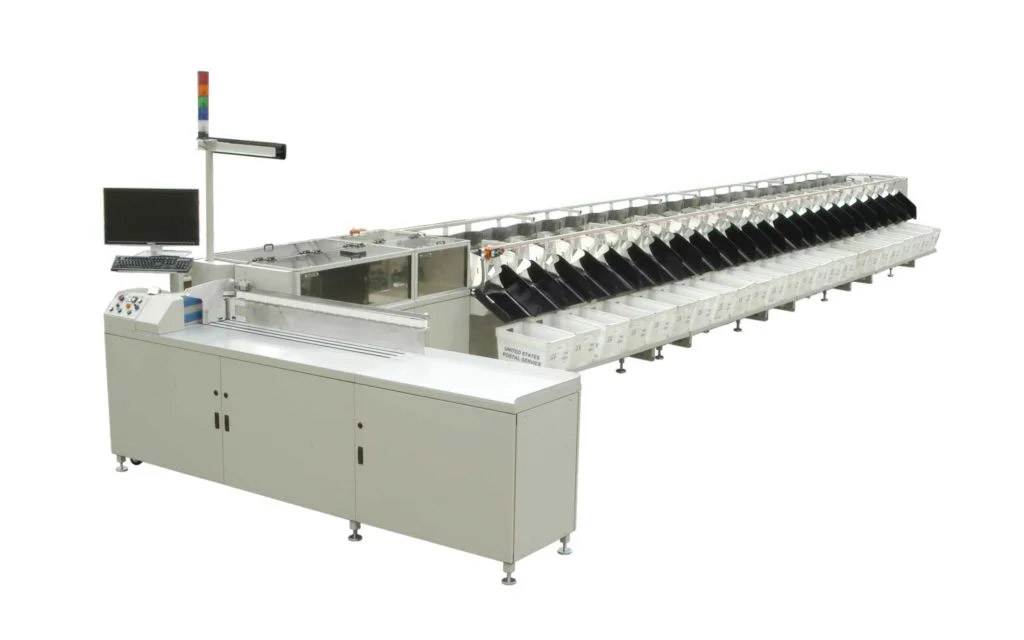

Letter and Flat Mail Sorting System

It has revolutionized flat-sorting technology. It has industry leading throughput. It handles letters and flats up to .6” thick. But, at the end of the day, what you really care about is your bottom line — and that’s where really shines. With its combination of speed and features like patented anti-jam technology, this amazing sorter minimizes the need for human intervention. Which translates to real cost savings and improved profits for your company.
Send Email:[email protected]

Product details

It has revolutionized flat-sorting technology. It has industry leading throughput. It handles letters and flats up to .6” thick. But, at the end of the day, what you really care about is your bottom line — and that’s where really shines. With its combination of speed and features like patented anti-jam technology, this amazing sorter minimizes the need for human intervention. Which translates to real cost savings and improved profits for your company.

Features & Benefits

  • Throughputs up to 24,000 letters and 18,000 flats per hour
  • The industry’s top performing Multi-Line Optical Character Reader (MLOCR) with text and handwritten capabilities
  • Omni-Directional software-based barcode reader processes IMB, two-dimensional and linear barcodes
  • Processes flats up to 0.6” thick
  • Advanced sweep-less chute design
  • User-friendly diagnostic tools
  • It't sorter pocket design leverages patented anti-jam technology for more reliable processing
  • Flexible stacker design allows for pockets, chutes or a combination of both
  • Transmission-free, direct-drive system reduces power consumption, downtime, and decibel level
  • Optional integrated conveyor reduces labor
  • Modular design provides the ability to accomodate future growth by adding more chutes and/or pockets
  • It's new Optesuite postal and analytics software package
  • Can be configured for incoming and outgoing mail operations


Technical Specifications

Physical Mail Characteristics

LENGTHMin 5″ (127 mm) / Max 13″ for mixed (330 mm)
Max 15″ for flats (381 mm)
HEIGHTMin 3.5″ (88.9 mm) / Max 11.75″ (254 mm)
THICKNESSMin 0.007″ (.178 mm) / Max .5″ (12.7 mm)

Power Requirements

VOLTAGE208 VAC 3 phase Wye configuration
CURRENT30 – 90 Amps per phase
FREQUENCY60 Hz
– or –
VOLTAGE415 VAC 3 phase Wye configuration
CURRENT15 – 45 Amps per phase
FREQUENCY50 Hz

Equipment

MAGAZINEStandard capacity: 55″ (1409.7 mm)
READER TRANSPORT UNITMounting provisions for Reader Camera; Section to level the mail to transport deck
PICK-OFF RATELetter: Up to 24,000 mailpieces per hour; Flats: Up to 18,000 mailpieces per hour
DELAY MODULELatency section of OCR and Address Lookup
INKJET/BARCODE READER*Inkjet and Barcode Reader/Verifier; Transport Section
12 POCKET STACKER MODULEPocket capacity: 15″ (381mm) of mail per bin

Optional Equipment

12 Pocket Chute Module(s)
12 Pocket Mixed Module
Conveyor System

Operating Environment

FLOOR LANDING33 lbs/sq. inch (2.3kg/sq. cm)
TEMPERATURE50° F (10° C) to 104° F (40° C)
RELATIVE HUMIDITYUp to 95‰ non-condensing


Key Features

  • Friction Based Pickoff
  • Superior OCR technology with handwritten capability
  • Extensive diagnostics



Key Markets

  • Insurance Companies
  • Presort Bureaus
  • Financial Institutions
  • Print Shops
  • Universities
